KStrong® Small Steel Carabiner, 1” Opening (ANSI)
Product Code: UFC401110

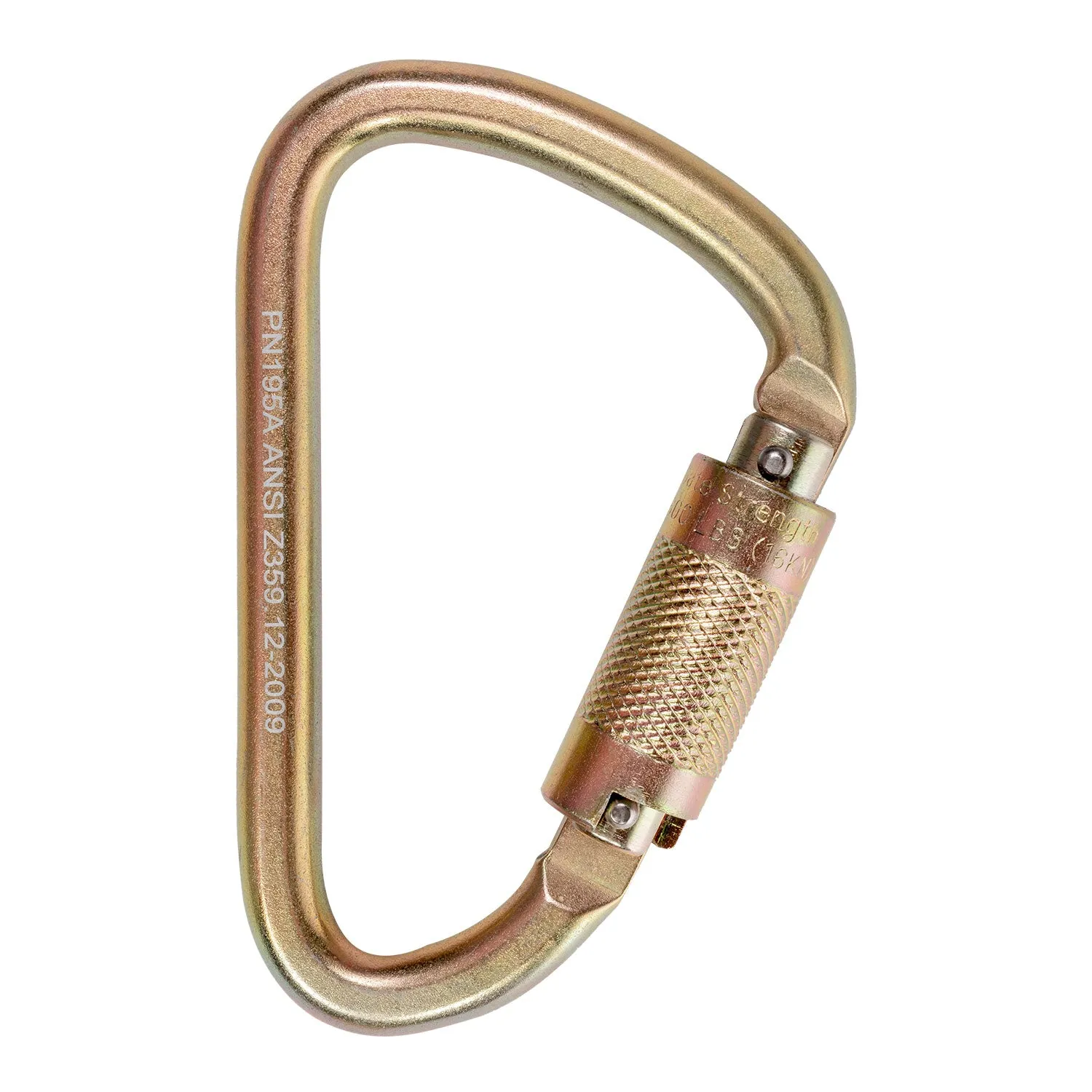

The KStrong® Quarter Turn Locking Steel Carabiner with a 1” gate opening is a robust and high-strength carabiner designed for secure and reliable connections in various industrial applications. Made from a 0.43” diameter round alloy steel bar, this carabiner ensures durability and strength. It features a self-closing and automatic locking mechanism that is secured with a quarter turn nut. The carabiner is galvanized with golden yellow or silver passivation to provide excellent corrosion resistance. With a minimum breaking strength of 9000 lbs., this carabiner meets or exceeds ANSI Z359.12-2009 and CSA Z259.12 standards, ensuring maximum safety and performance.
Feature | Specification |
|---|---|
| Product Name | KStrong® Quarter Turn Locking Steel Carabiner with 1” gate opening (ANSI) |
| Design | Gate opening 1” (25mm), self-closing and automatic locking with quarter turn nut |
| Material | Alloy Steel |
| Finish | Galvanized with Golden Yellow / Silver passivation |
| Minimum Breaking Strength | 9000 lbs. (4082kg) |
| Gate Face Strength | 3600 lbs. (1633kg) |
| Gate Side Strength | 3600 lbs. (1633kg); Minor Axis: 3600 lbs. (1633kg) |
| Weight | 0.63 lbs. ± 0.02 lbs. (286 gm. ± 10 gm) |
| Relevant Standards | Meets or Exceeds ANSI Z359.12-2009 & CSA Z259.12 |
