Transport your board to the beach practically and sustainably.
Overview

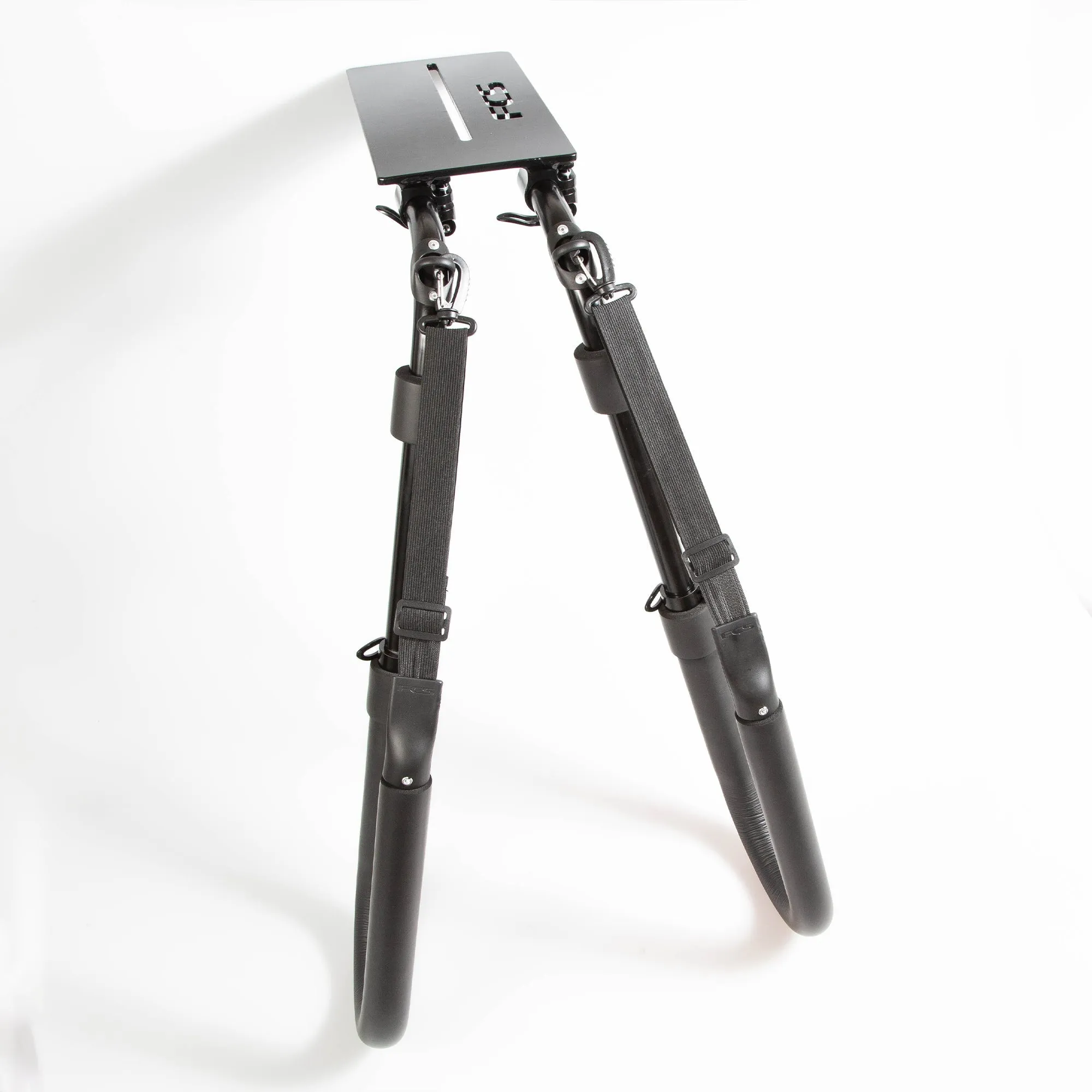

Introducing our innovative surfboard rack system, designed for ultimate convenience.
Features
- Adjustable and easy-to-mount system using an Allen key.
- Toolless adjustable brackets and quick-release/removable arms for when racks are not in use.
- Locking clips to stop the unwanted release of straps

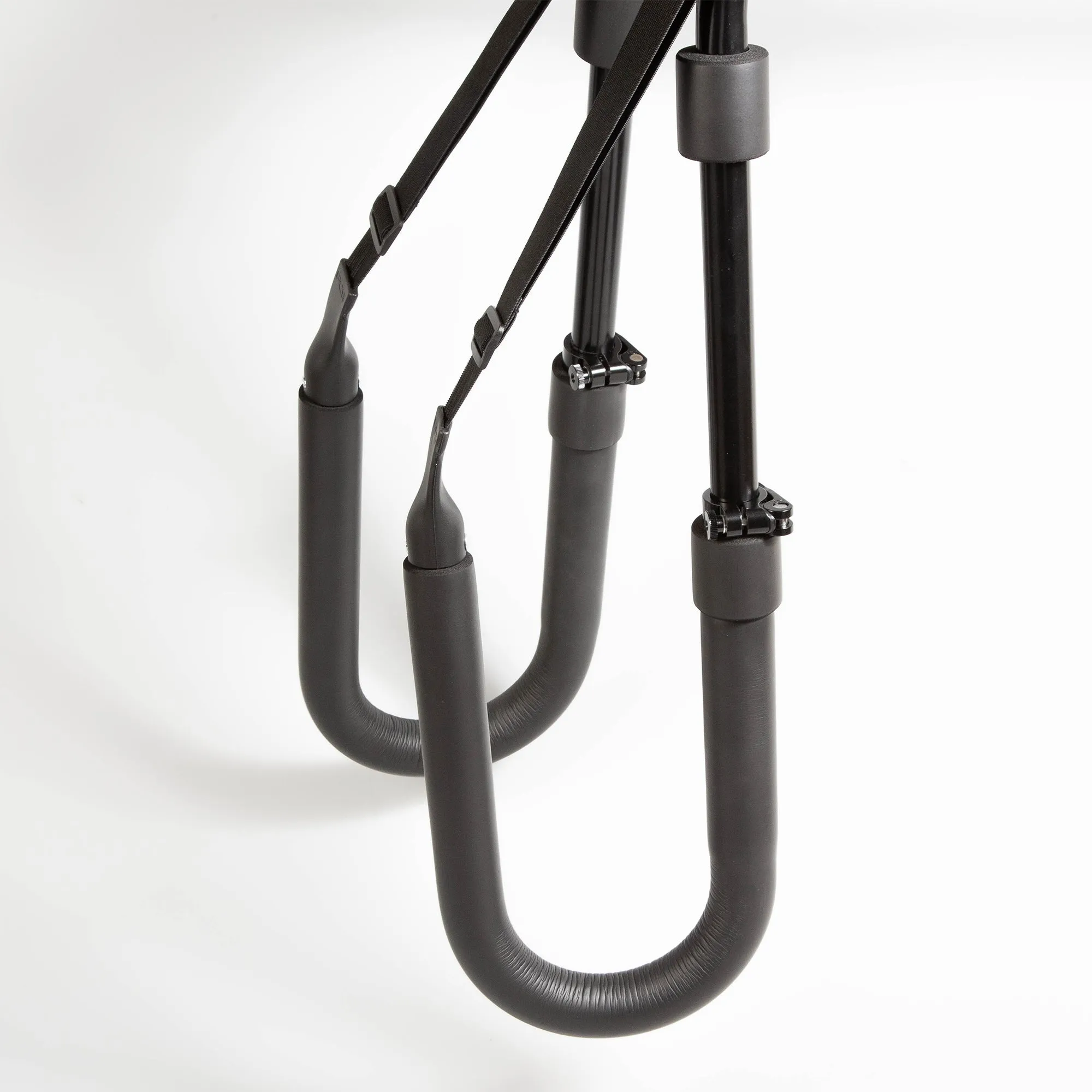

- Thick foam to protect boards

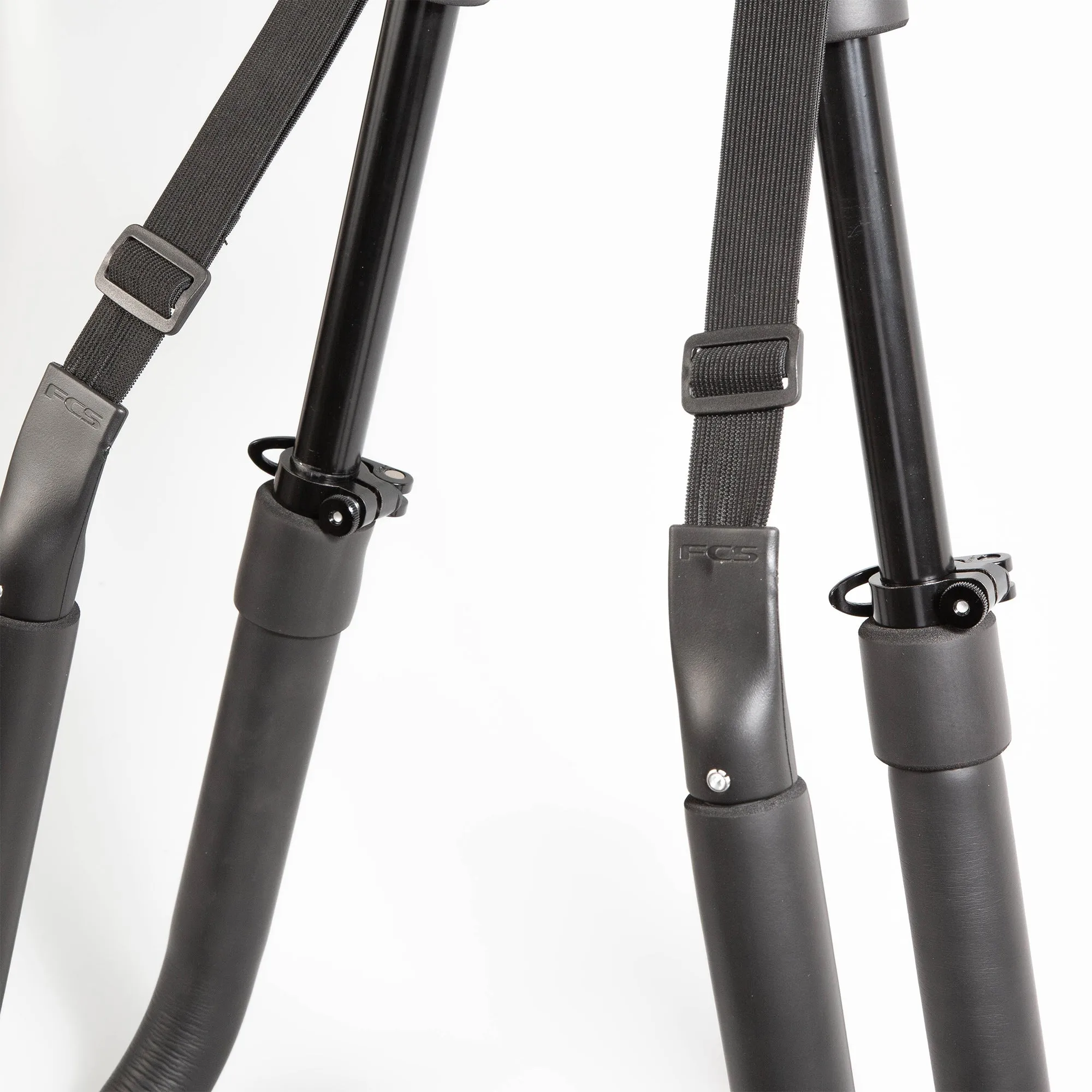

- Wide elastic for secure holding of boards and not damaging the rails. Adjustable length to suit various board widths
- Tool-less fully adjustable lower arms
Disclaimer
*Always ride within your abilities. Be aware of the extra width when riding with board and racks attached. Use more caution on windy days and always obey the road rules. Wear a helmet, it's the only head you have.
The manufacturer and seller assume no responsibility or liability of any nature for any injury caused by this product to any person or persons or property of the buyer, user or other persons.
Installation Guide

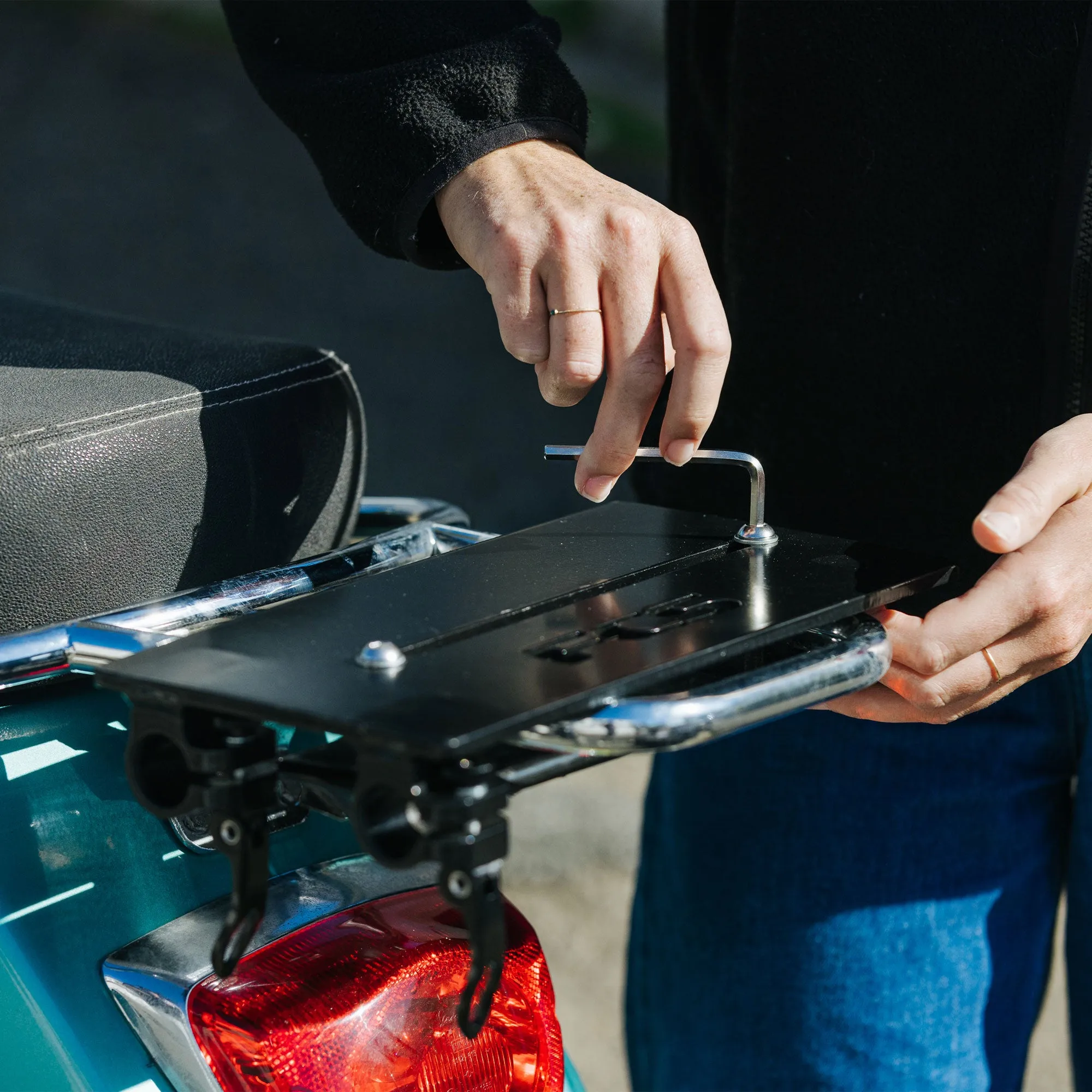

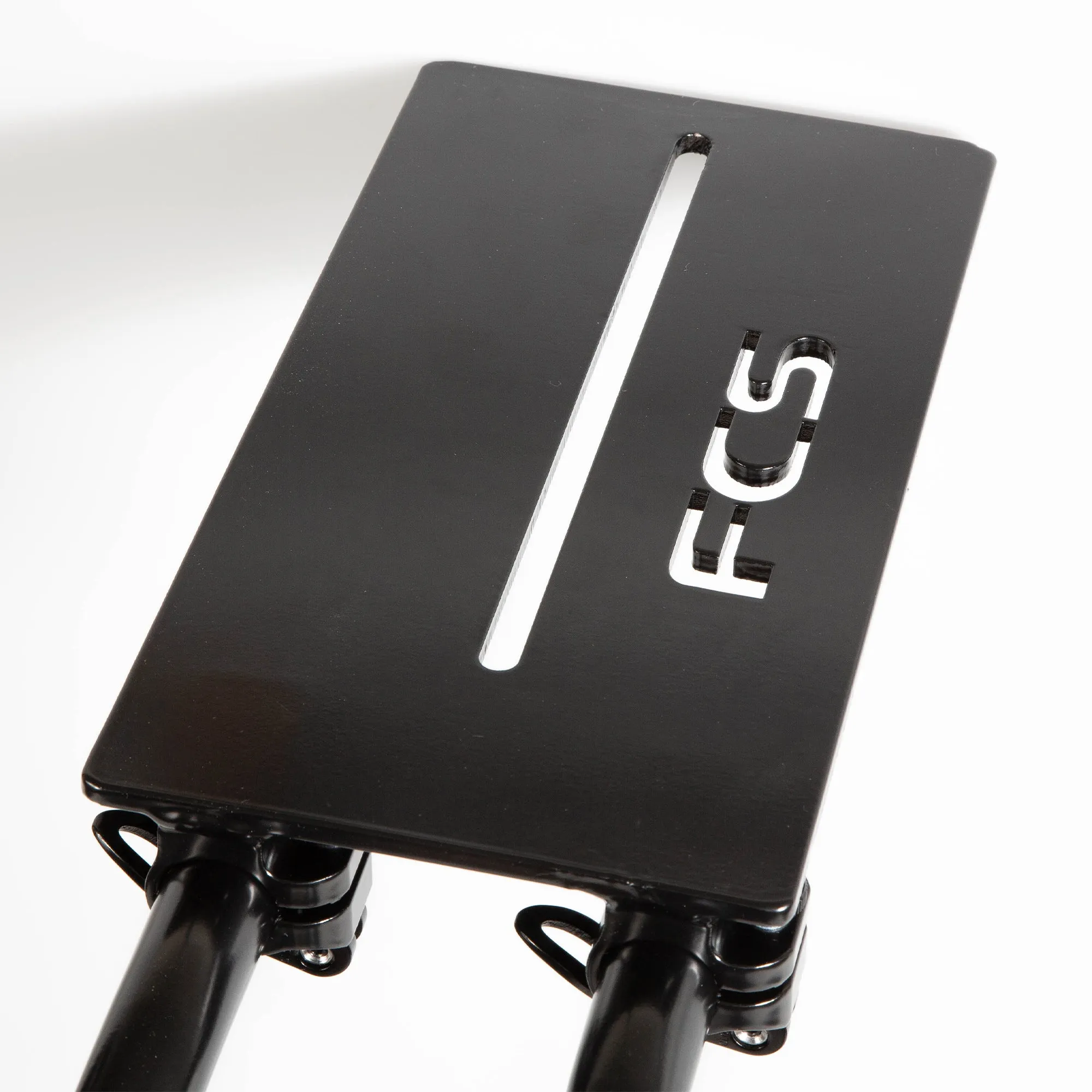

1. Position the upper plate and lower plate on either side of the mounting area behind the seat and use the allen key provided to screw together until firmly clamping the rear mount in position.
2. Open the quick-release cam leavers and slide the ‘L’ shaped tubes into the seat post mount. You can adjust the tightness of the quick-release cam simply by turning the knob opposite the leaver before closing to secure the arms in place.
3. Open quick-release cam leavers and slide the ‘U’ shaped tubes onto the arms. Adjust the tightness of the leavers before securing by following step (2).

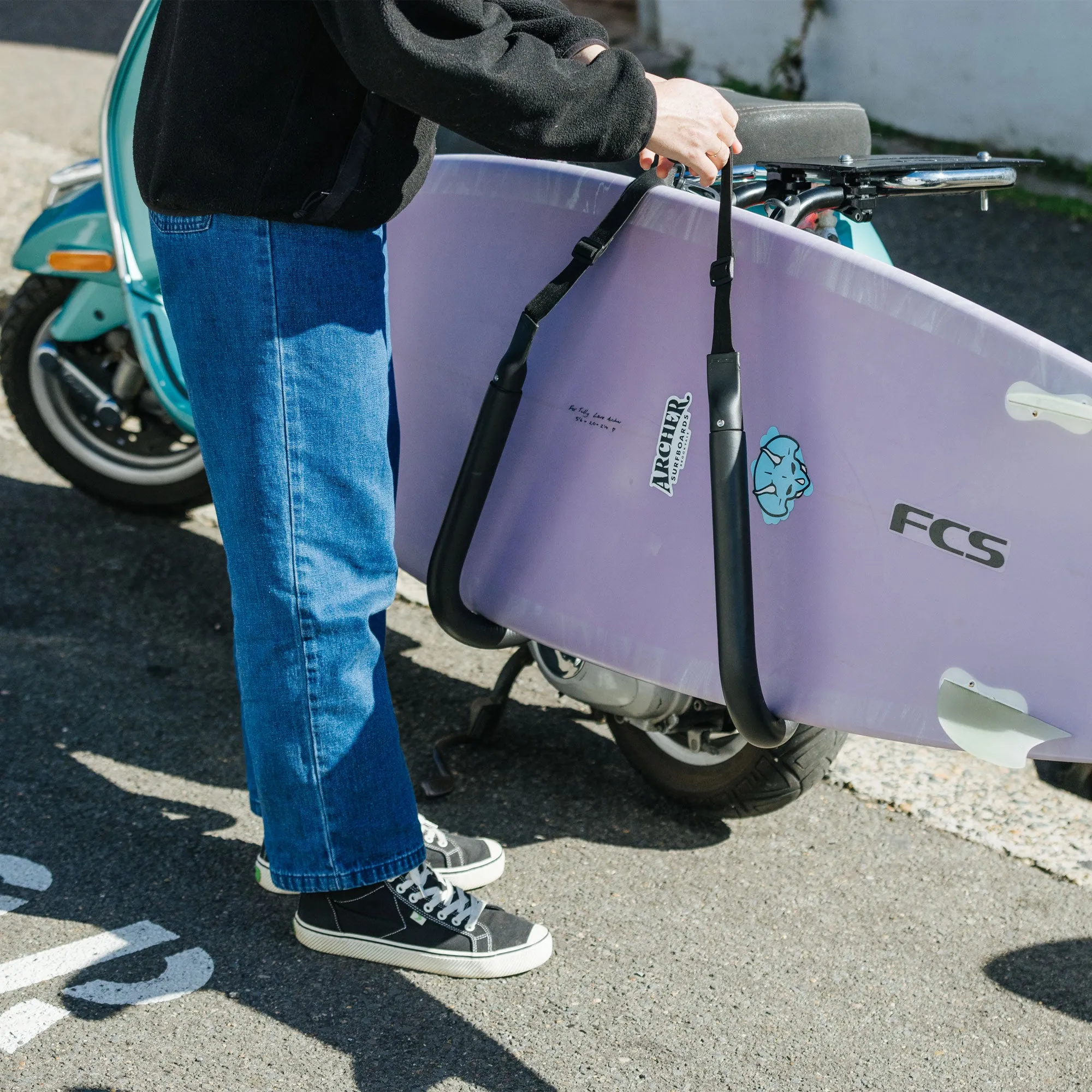

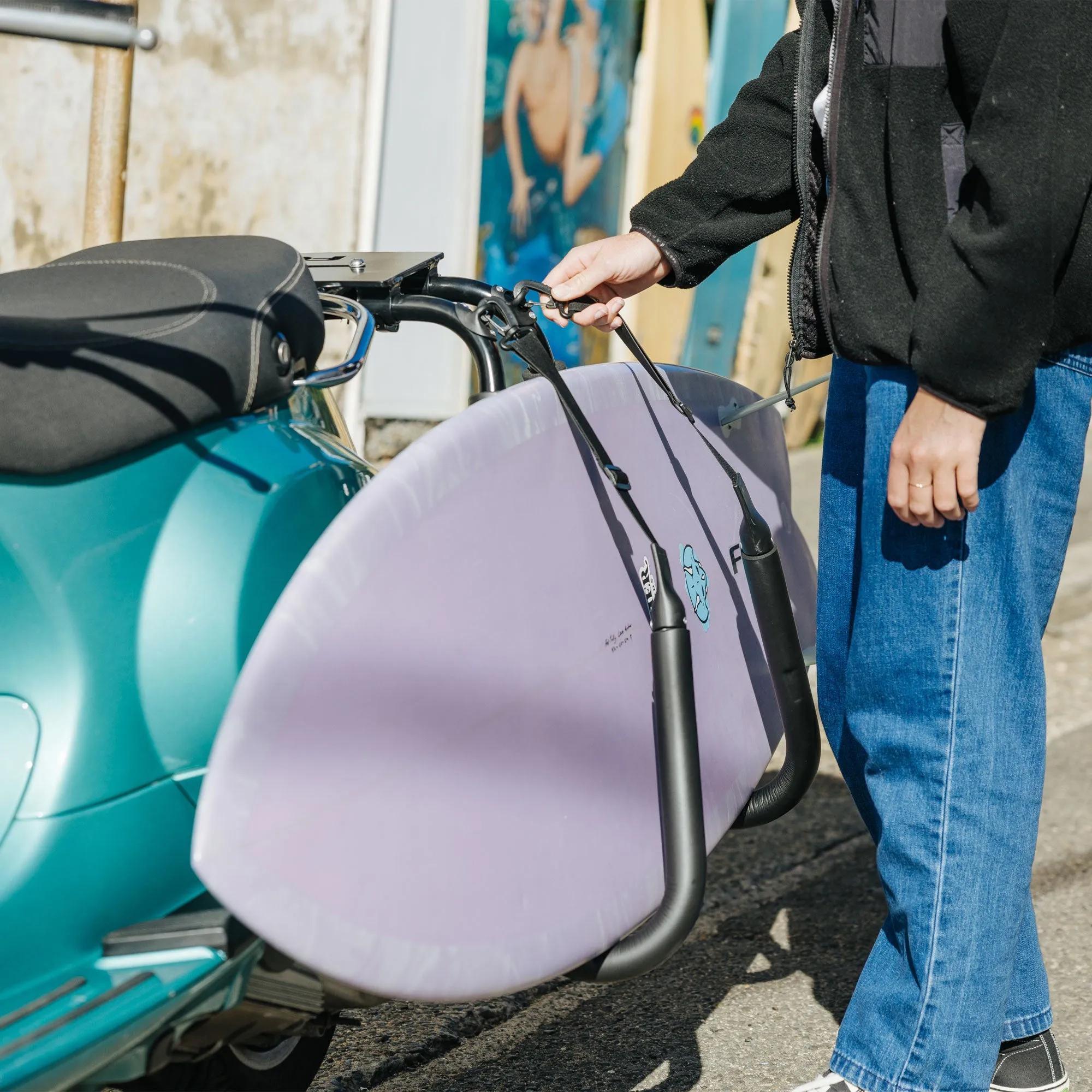

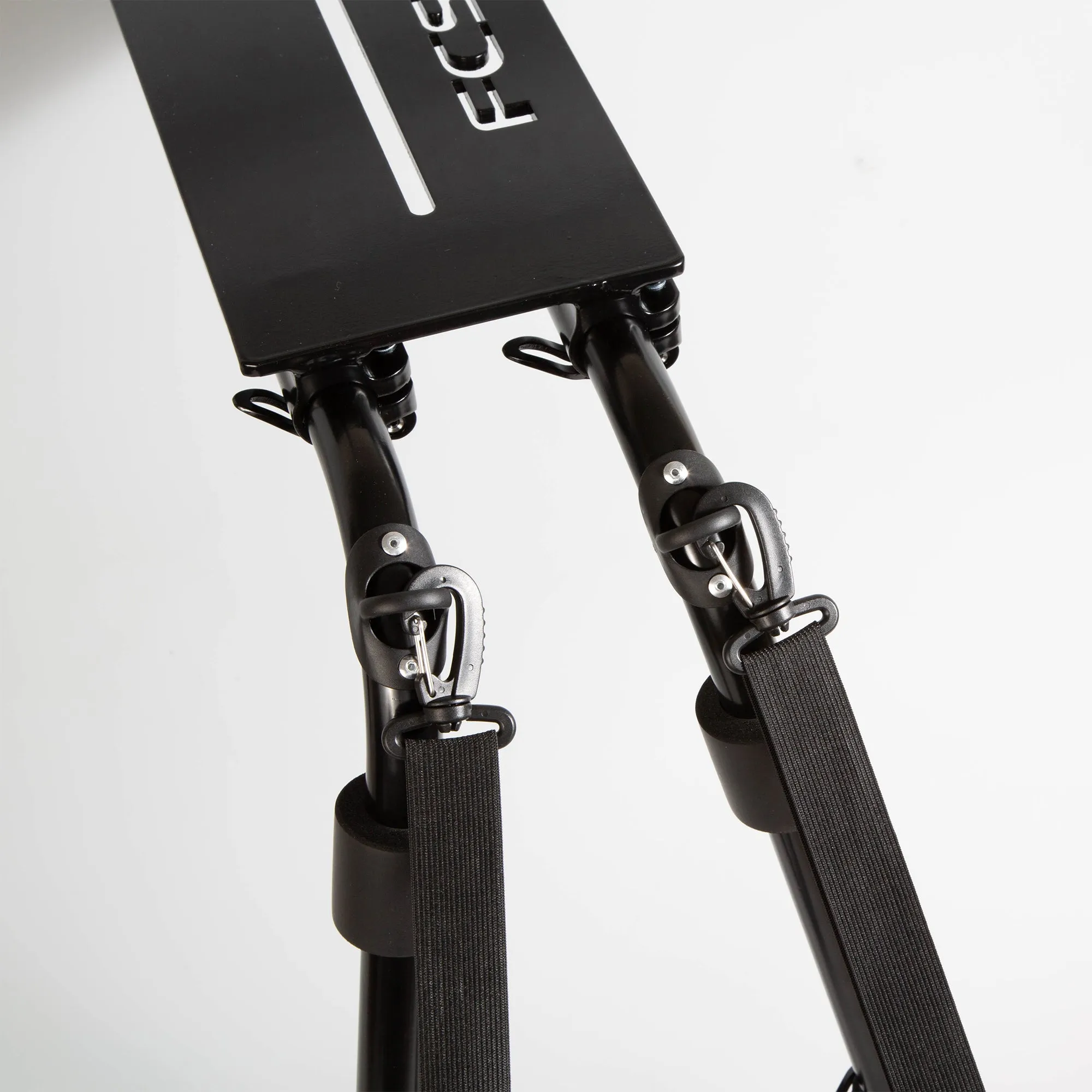

4. Finally, Place your surfboard in the rack and splay the arms out for better support, simply by using the quick release cams in the scooter rear mount. Clip the carabiner clips onto the attachment loops and simply adjust the strap length with the buckle.
